Description
Open Sesame Model 133

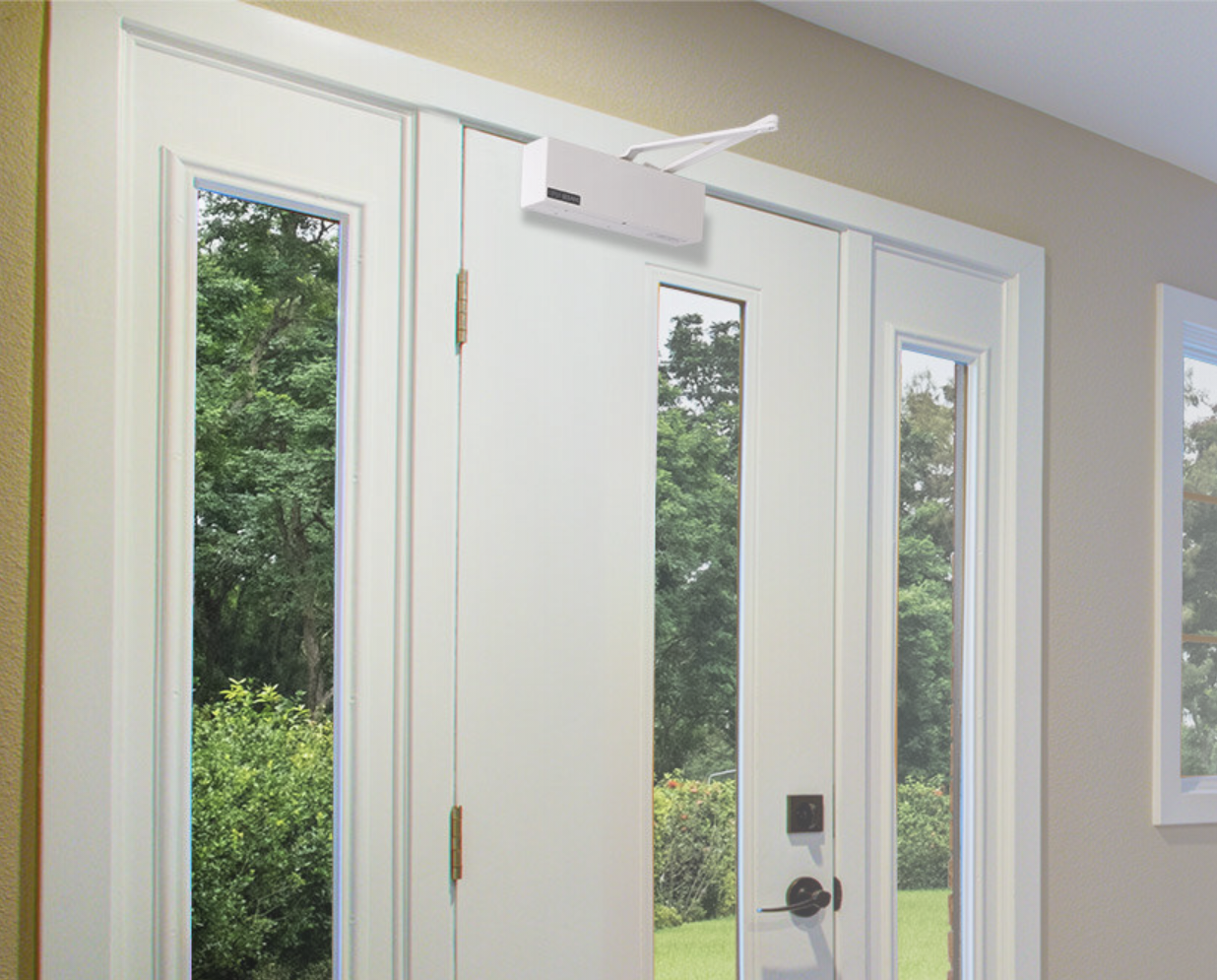

The Open Sesame Model 133 is an automatic door opening system. It is best for any free swinging door for homes, office doors, apartment doors, bathroom doors, etc. The Model 133 is a package and includes the Standard Remote Control.
Features
- Remote control
- Electric strike
- Low voltage wiring kit
Contact Your Local Accessibility Expert.
FAQS
What are the product specifications for the Model 133?
Automatic door operator shall be electromechanical, and provide for both powered opening and powered closing of a door. The door opener shall provide no influence upon the door except when it is actively involved with powered opening, holding open, or closing, thus allowing unencumbered manual operation.
The unit shall contain an internal battery power supply to provide powered operation in the event of external power failure. The unit shall be powered by 24 vac, external to the device under provisions of low voltage wiring and is supplied with a 20 VA transformer requiring 115 vac 60 Hz service.
The operator shall be mounted according to drawings and instructions provided with each unit. The unit shall be capable of mounting on either door or lintel and shall provide door opening angles up to 120 degrees.
The unit shall possess an adjustable hold-open feature allowing the door between 5 and 30 seconds for passage. The unit shall stop when encountering an obstruction during an operating cycle at which time it ceases to provide an influence on the door.
How do you activate the model 133?
What accessories are available?
Standard transmitter
Proximity sensor
Keyless entry
Spec switch
What universal mounting types are available?
Door mount
Lintel mount
Parallel mount
What electrical specifications are needed?
Operator:
16-24 vac/dc
Wall Transformer:
Input – 115 vac, 60 Hz
Output – 24 vac, 20 va
Battery:
12V DC, 1.2Ah sealed lead-acid battery
Motor:
12V DC, 1.5A
Clutch:
12V DC, 0.5A
Supply for Unlatching Device:
12V DC, 1A
Radio Receiver:
Up to 1 Billion Security Code Combinations (Programmable)
Dimensions:
2 5/8” x 4” x 14 1/8” (Suitable for mounting with perpendicular wall close to door frame.)
Weight:
10 Lbs.
Material/Finish:
Steel housing
Powder coated finish
